Home » Products » Metal Bearings» SLiding bearing » DNB-#200P20 20mm Thick Wear Plate
DNB-#200P20

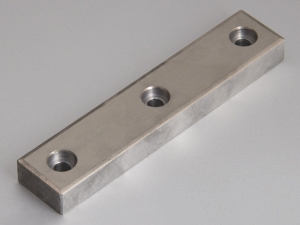

20mm Thick Wear Plate

The DNB-#200P20 20mm thick wear plate is a kind of copper plate. It combines the wear-resisting property of a metal substrate with the self-lubricating property of a solid lubricant. There is no need to refuel or maintain our product when in use. The self-lubricating plate is used extensively for high-load, intermittent or oscillating operations in the tire moulds, reservoir work/emergency gate, and the plastic machinery, etc.

Please select the part number according to the required thickness, width and length. For example, the ordering code of the 20mm thick wear plate is DNB-#200P20-2875 under conditions of 20mm thickness, 28mm width, and 75mm length.

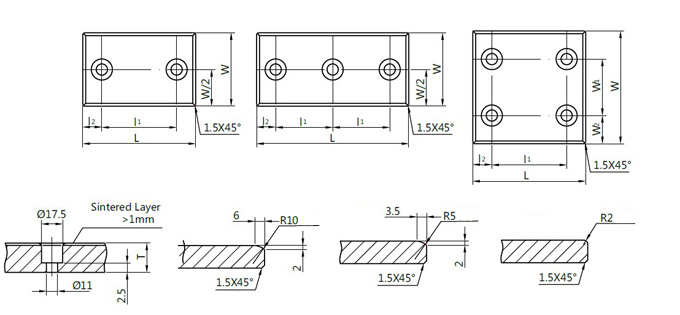

Technical Parameters (Unit: mm)

Parts No. Width Length Thickness Mounting holes Pitch Number of Screw holes Chamfered shape
W Tolerance L Tolerance T Tolerance W1 Tolerance W2 L1 Tolerance L2
#200P20-2875 28 -0.1
-0.3
75 -0.1
-0.3
20 ±0.01 - - - 45 ±0.2 15 2 C
#200P20-28100 100 - - - 50 25
#200P20-28150 150 - - - 100 25
#200P20-3875 38 75 - - - 45 15
#200P20-38100 100 - - - 50 25
#200P20-38150 150 - - - 100 25
#200P20-4875 48 75 - - - 45 15 B
#200P20-48100 100 - - - 50 25
#200P20-48125 125 - - - 100 25
#200P20-48150 150 - - - 100 25
#200P20-48200 200 - - - 100 50
#200P20-48250 250 - - - 45 25 3
#200P205875 58 75 - - - 50 15 2
#200P20-58100 100 - - - 75 25
#200P20-58150 150 - - - 100 25
#200P20-7575B 75 75 - - - 25 25 A
#200P20-75100B 100 - - - 50 25
#200P20-75125 125 - - - 75 25
#200P20-75150 150 - - - 100 25
#200P20-75200 200 - - - 150 25
#200P20-75250 250 - - - 100 25 3
#200P20-75300 300 - - - 100 50
#200P20-100100 100 100 50 ±0.2 25 50 25 4
#200P20-100125 125 50 75 25
#200P20-100150 150 50 100 25
#200P20-100200 200 50 150 25
#200P20-100250 250 50 200 25
#200P20-100300 300 50 200 50
#200P20-125125 125 125 50 37.5 75 25
#200P20-125150 150 50 100 25
#200P20-125200 200 50 150 25
#200P20-125250 250 50 200 25
#200P20-125300 300 50 200 50
#200P20-150150 150 150 100 25 100 25
#200P20-150200 200 100 150 25
#200P20-150250 250 100 200 25
