Home » Products » Metal Bearings» Self-Lubricating Bearings » #50AB-SL4 Water Lubricated Aluminum Bronze Bearing

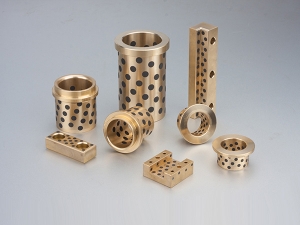

#50AB-SL4

Water Lubricated Aluminum Bronze Bearing

The #50AB-SL4 water lubricated aluminum bronze bearing adopts copper alloy with HB>150 as its base material. The oil-free bearing is inlaid with water lubricant, and its working surface has drilled holes.

The bearing with water lubricant is extremely resistant to heat and corrosion. A fragile phenomenon never occurs at low temperature. The water lubricated aluminum bronze bearing can be used at extremely low temperature. It is especially applicable to seawater and river environments such as the ships, valves, water turbines, water treatment, and the environmental engineering, etc.

Technical Parameters

Material


   Technical
   Chemical

#50SP1-SL1
CuZn25Al6
FeMn3
#50SP1-SL4
CuZn25Al6
FeMn3
#50SP5-SL1
CuZn25Al6
FeMn3
#50HP
CuZn25Al6
FeMn3
#50AB-SL1
CuAl10Ni
#50AB-SL4
CuAl10Ni
#50B
CuSn12
Cu 65 65 65 65 80 80 88
Sn             12
Pb 25 25 25 25
Zn 6 6 6 6
Ni         5 5
Al         10 10
Fe         5 5
Mn 4 4 4 4
Hardness
HB
>180 >180 >235 >250 >150 >150 >80
Tensile strength
N/mm²
>550 >550 >750 >785 >200 >200 >200
Elongation

>12   >12 >10 >10 >8 >8
Coefficient
of expansion
1.9×10-5/℃   1.9×10-5/℃ 1.9×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.8×10-5/℃
Limited Temp

300~400   300~400 300~400 400 400 400
Max load
N/mm²
80   100 118 50 70 70
MAX SPEED
M/min
15   15 10 20 10 10
Max PV
N/mm2*m/s
200   200 200 200 200 200
Compression set amount
400 N/mm²
<0.01   <0.01 <0.05 <0.04 <0.05 <0.05
